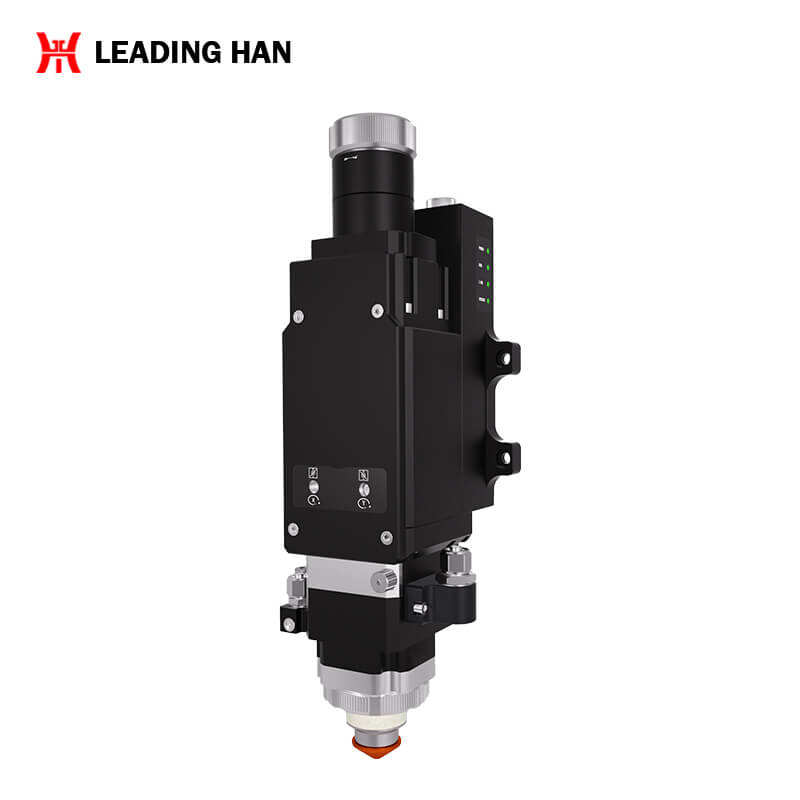

Laser head
BLT310 Laser Cutting Head delivers ±0.05mm cutting accuracy, 60m/min speed, and 4000W power for tubes & beams. Complies with ISO standards. Trusted by 500+ manufacturers globally.
Laser wavelength: 1030-1090nm
Laser Power: ≤4000W
Maximum running speed: 60m/min
Fiber interface: QBH,EOC
| Cutting Head | BLT310 | BLT310T |
|---|---|---|
| Laser wavelength | 1030-1090nm | |
| Laser Power | ≤4000W | |
| Fiber interface | QBH,EOC | |
| Spot magnification | Raytools\Boci | |
| Servo motor brand | DELTA | |
| Guiderail | On the silver | |
| Control system brand | Cypcut | |
| Laser power | 1500W-12000W | |
| Pipe processing length | 6000-12000mm | |
| Cutting accuracy | ±0.05mm | |
| Positioning accuracy | ±0.03mm | |
| Maximum running speed | 60m/min | |
| Maximum acceleration | 0.5G-1G | |
| Applicable Material | Round tubes, square tubes, special-shaped tubes, rectangular tubes channel steels,l-beams, etc. can be cut into various shapes |
