tube laser cutting

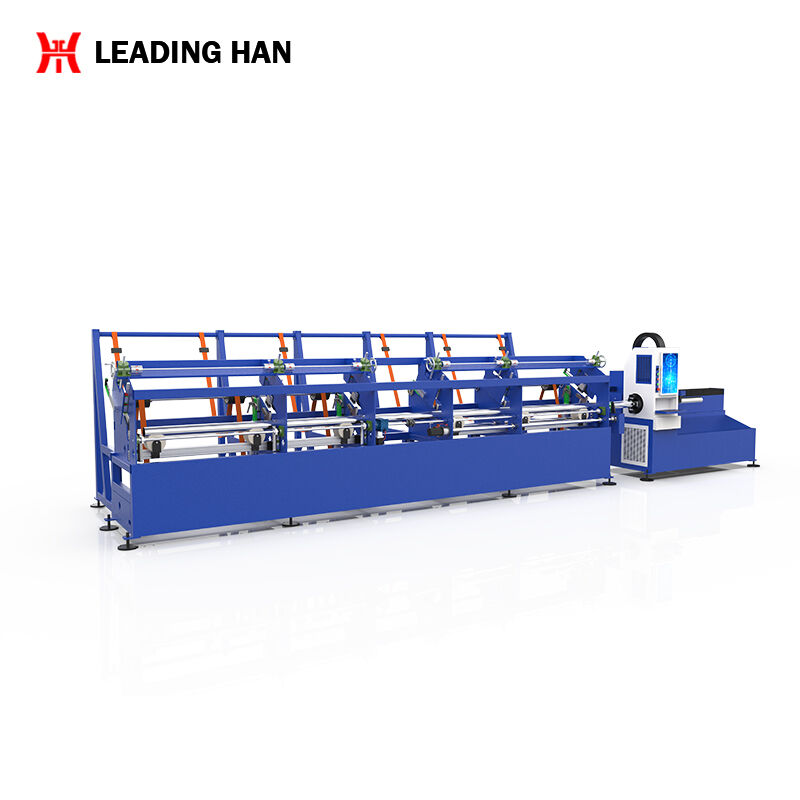

Pulling laser tube cutting machine
High-speed laser tube cutting machine by LEADING HAN: 1500W-30000W power, ±0.05mm cutting accuracy, up to 1.2G acceleration. Cuts round, square & shaped tubes with precision. Trusted by global manufacturers for enhanced productivity and ROI.

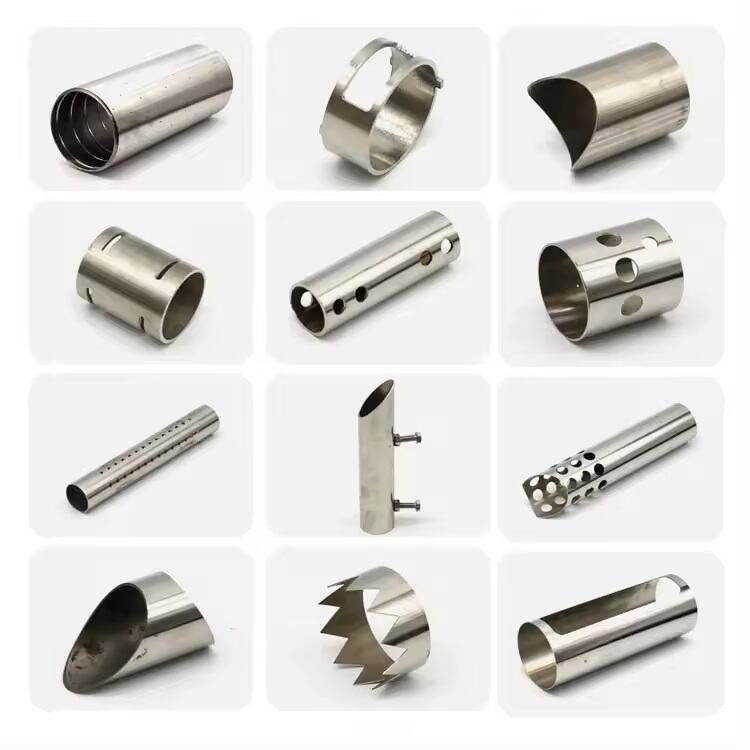

LH-PP laser tube cutting machine with material pulling function, ranging from 1.5kw to 30kw laser power, processes pipes up to 7500mm with precision and efficiency. Equipped with automatic loading and unloading, it maximizes work efficiency and reduces labor costs. Moreover, it’s perfect for cutting racetrack-shaped, oval-shaped stretching tubes, angle steel, channel steel, I-beam, and other special-shaped steels.
Machine Features:
1. The pneumatic puller and chuck are used to coordinate the action. The clamping force can be adjusted arbitrarily. Different forces can bear different loads to avoid deformation of thin pipe clamps and loose clamps of thick pipes.
2. With automatic loading and unloading system, it saves labor costs, reduces the labor intensity of operators, and improves production efficiency.
3. The operation is simple, and the machine can be remotely controlled for cutting, perforating, moving, calibrating, emergency stop and other operations. Wireless handle control is convenient and fast.
Product parameters：
Note: All sizes can be customized
| Model | PP6060/PP6090 | |
|---|---|---|
| Pipe processing range | 10-900mm | |
| brand name | Leading han | |
| Laser source brand | RAYCUS\IPG | |
| Laser head brand | Raytools\Boci | |
| Laser power | 1500W-30000W | |
| Maximum cutting length | 6000mm | |
| Cutting accuracy | ±0.05 mm | |
| Positioning accuracy | ±0.03 mm | |
| Maximum acceleration | 1.2G | |
| Applicable Material | Round tubes,square tubes,special-shaped tubes,rectanqular tubes,channel steels,\ | -beams, etc,can be cut into various shapes |
